HPFLEX® · uPVC
HPFLEX® Heavy Duty Electrical Corrugated Conduit
HPFLEX® Heavy Duty corrugated conduit is manufactured in Australia to the highest standards with a 25Year warranty.
Extreme UV (T)
Heavy Duty
Pliable
Australian Made
Lead Free
Impact Resistance
6J
Impact classification
Compression
1250N
Compressive strength
UV Classification
Extreme UV (T)
Weathering exposure
Working Range
-5°C → +60°C
Ambient, continuous
Overview
HPFLEX® Heavy Duty corrugated conduit is manufactured in Australia to the highest standards with a 25-Year warranty*. Our conduit conforms to AS/NZS2053.5:2001 and is manufactured with B.E.P certified material. HPFLEX® is available from 16mm to 63mm (external diameter) and 80mm (internal diameter). Unplasticised PVC is a cost-effective polymer with high resistance to impact, water, weather, chemicals and corrosive environments. Due to its orange colour and high compression strength, HPFLEX® Heavy duty is ideal for underground electrical installations requiring the concealment and protection of electrical cables. Our heavy-duty is also UV stabilised to ensure strength and stability if subject to Australia’s harsh UV rays.
16mm to 63mm conforms to AS/NZS2053.5-2001 & Conforms to IEC 61386-22:2021 4.4.2.1
80mm Conforms to IEC 61386-22 4.4.2.1.2.2
- Made in Australia
- Up to 80mm Diameter
- Extreme UV (T) Stabilised
- Lead-Free
- B.E.P CertifiedLooking for 100 & 150mm? At this stage, those dimensions are limited to the HPFLEX® Corrugated Joiner
*HP Profiles’ liability diminishes over the term of the warranty. See here for full warranty terms and conditions or to submit a claim.
Characteristics
Product Code
HPPCH
Material
uPVC
Impact Resistance
6J
Compression Strength
1250N
UV Classification
Extreme UV (T)
Minimum Working Temperature
-5°C
Maximum Working Temperature
+60°C
Resistance to Bending
Pliable
Flame Performance
Non-flame propagating (UL94-V0)
Dielectric Strength
10 - 40 kV/mm
Colour
Orange
Country of Manufacture
Australia
Product Codes & Dimensions
Scroll horizontally to see all columns. Contact our technical team for project-specific sizing.
Part Number
Variant Description
Nominal Size
Internal Ø (mm)
External Ø (mm)
Length (m)
Bend Radius (mm)
Pack Qty
Carton Qty
Colour
HPPCH80
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll - Orange
Ø80
79
96
480
Orange (RAL 2012)
HPPCH80W
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll - White
Ø80
79
96
480
White (RAL 9003)
HPPCH80B
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll - Black
Ø80
79
96
480
Black (RAL 9011)

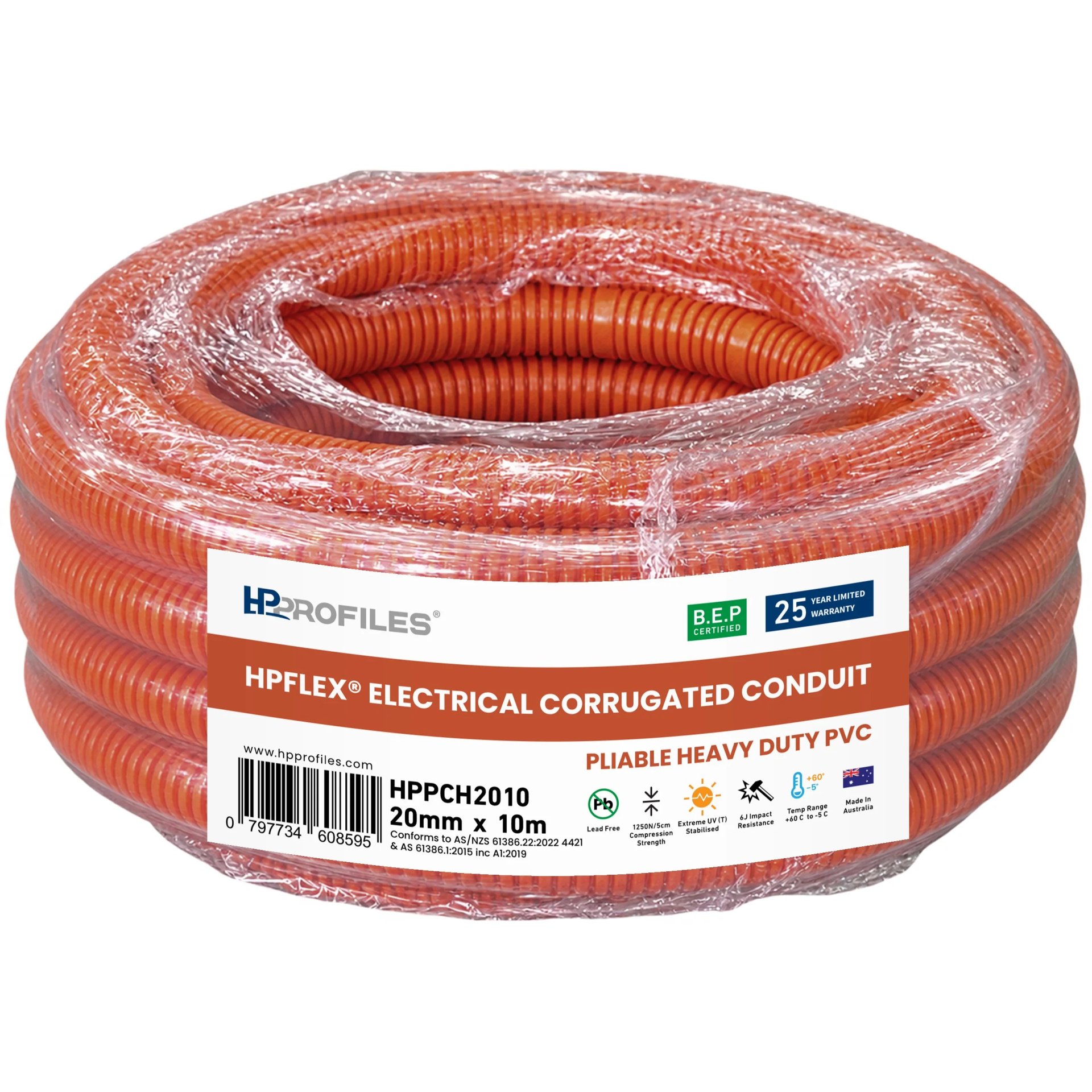

HPPCH2010
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 20mm x 10m
Ø20
14
20
10
120
Orange (RAL 2012)

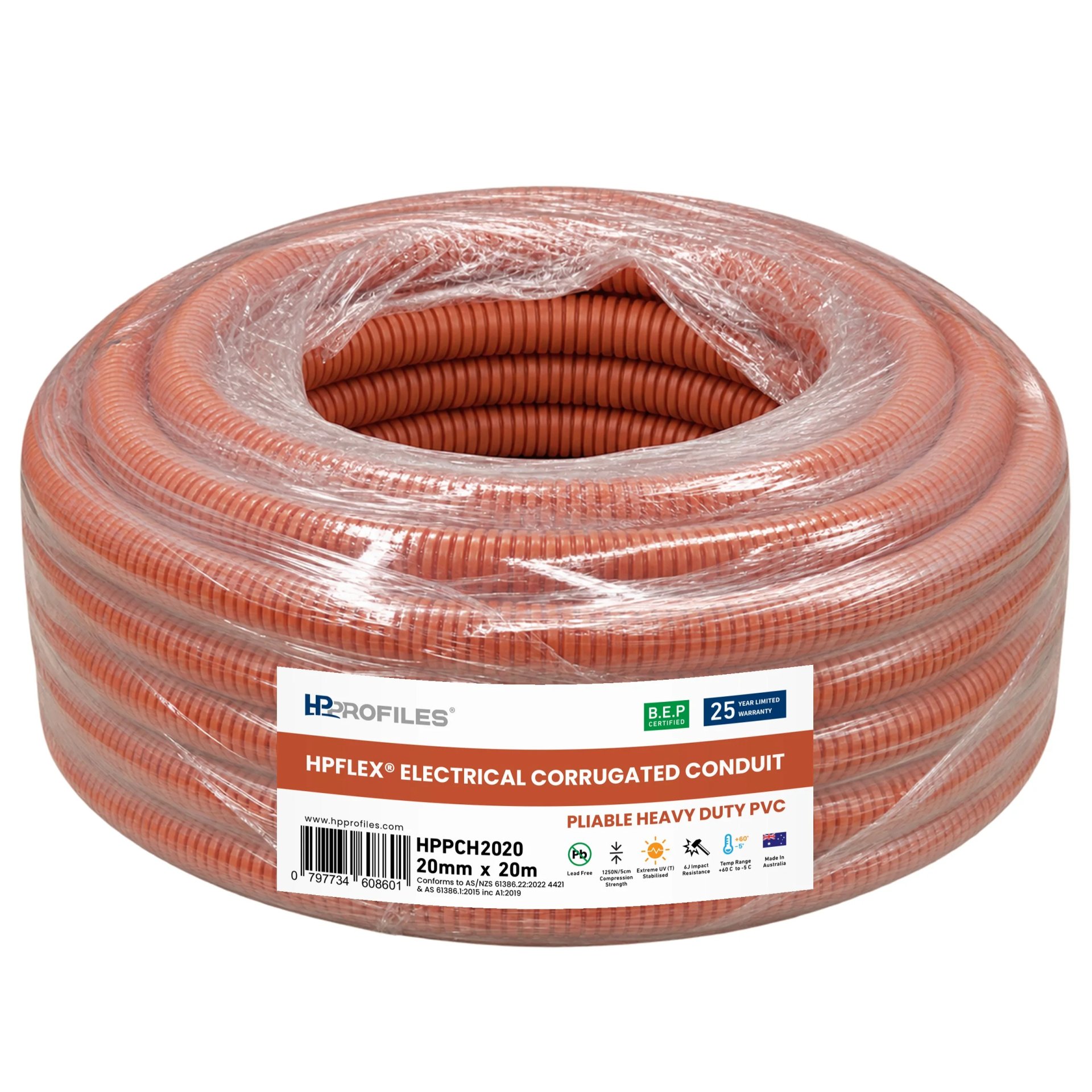

HPPCH2020
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 20mm x 20m
Ø20
14
20
20
120
Orange (RAL 2012)

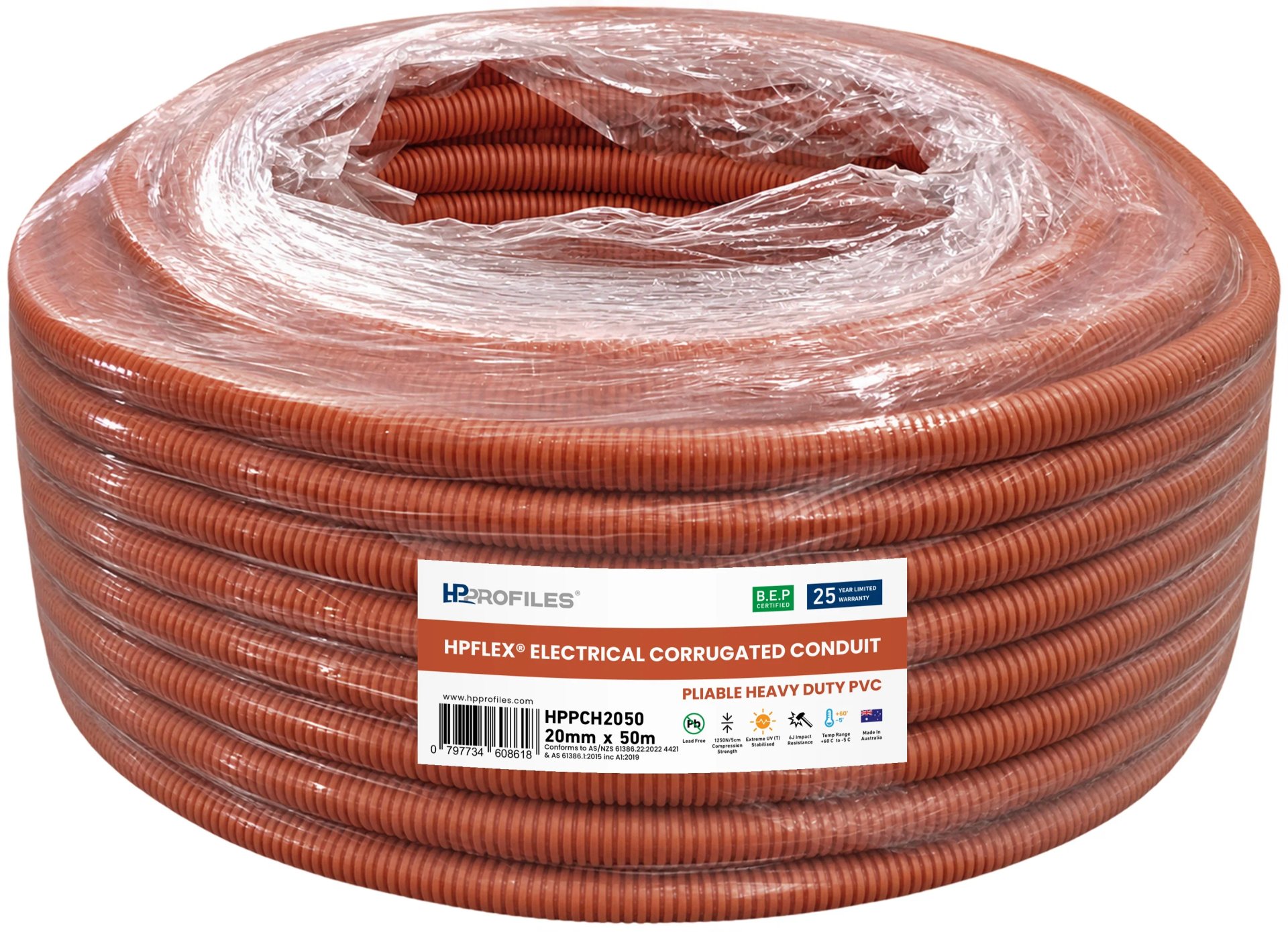

HPPCH2050
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 20mm x 50m
Ø20
14
20
50
120
Orange (RAL 2012)

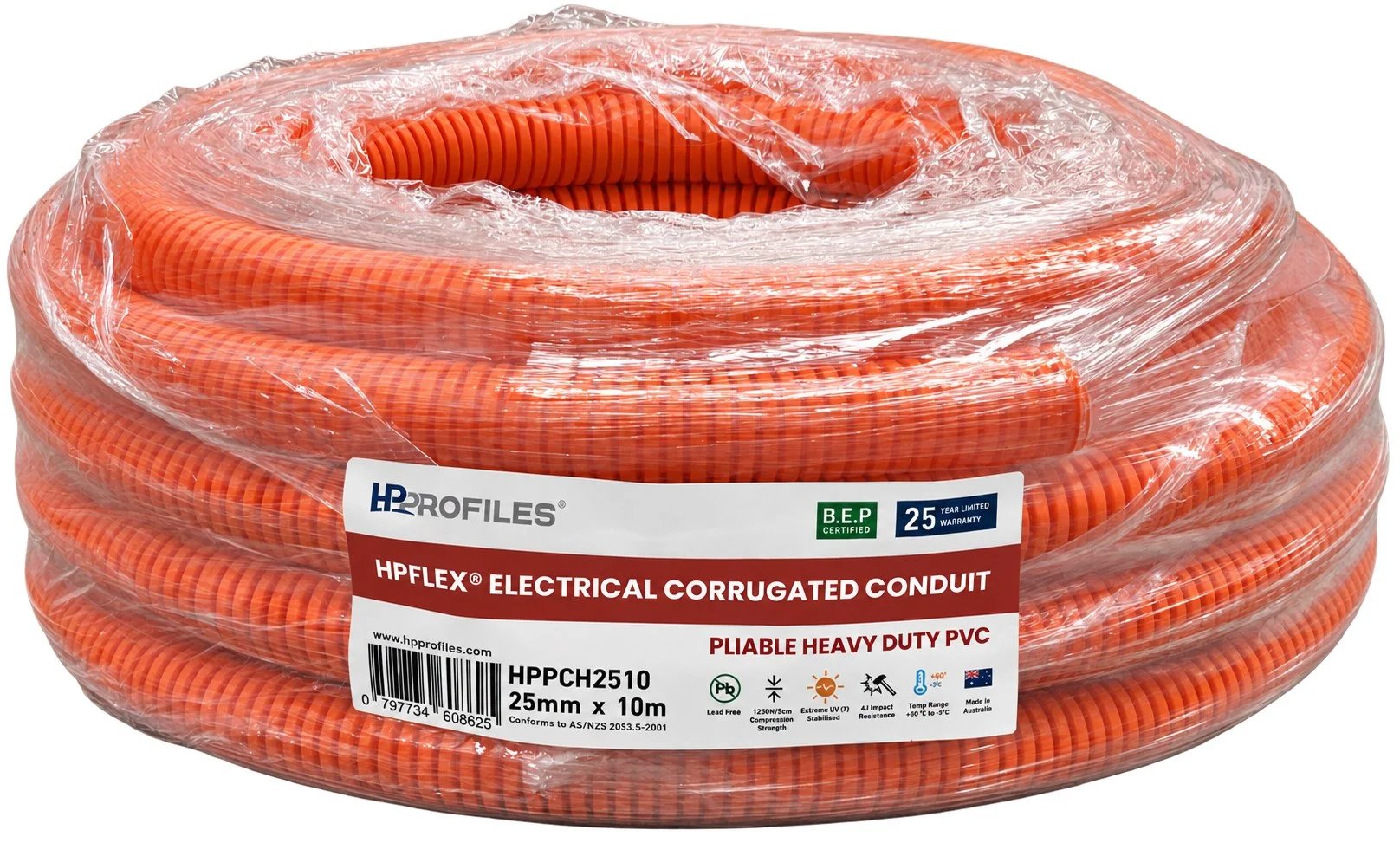

HPPCH2510
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 25mm x 10m
Ø25
18.2
25
10
150
Orange (RAL 2012)

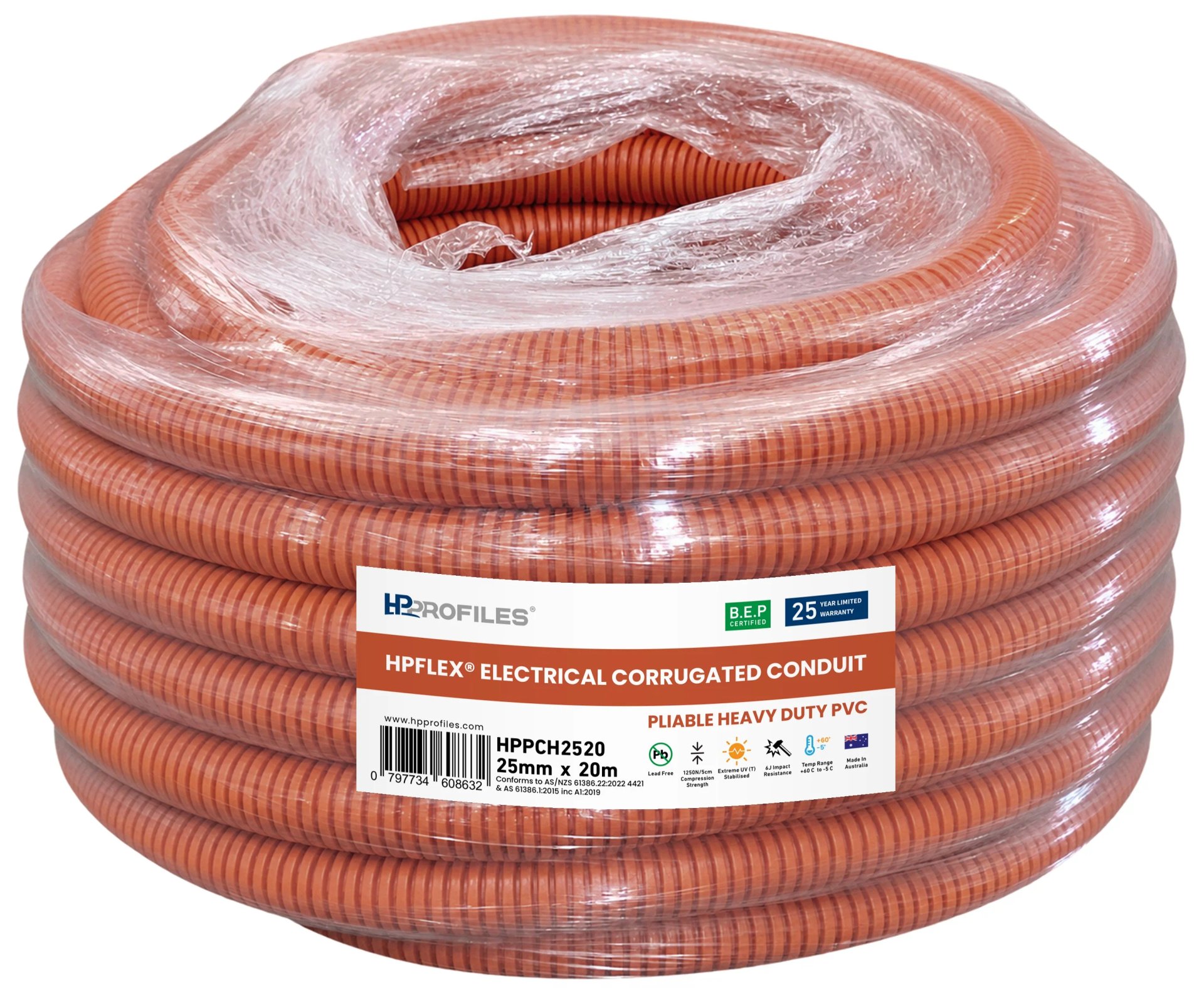

HPPCH2520
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 25mm x 20m
Ø25
18.2
25
20
150
Orange (RAL 2012)

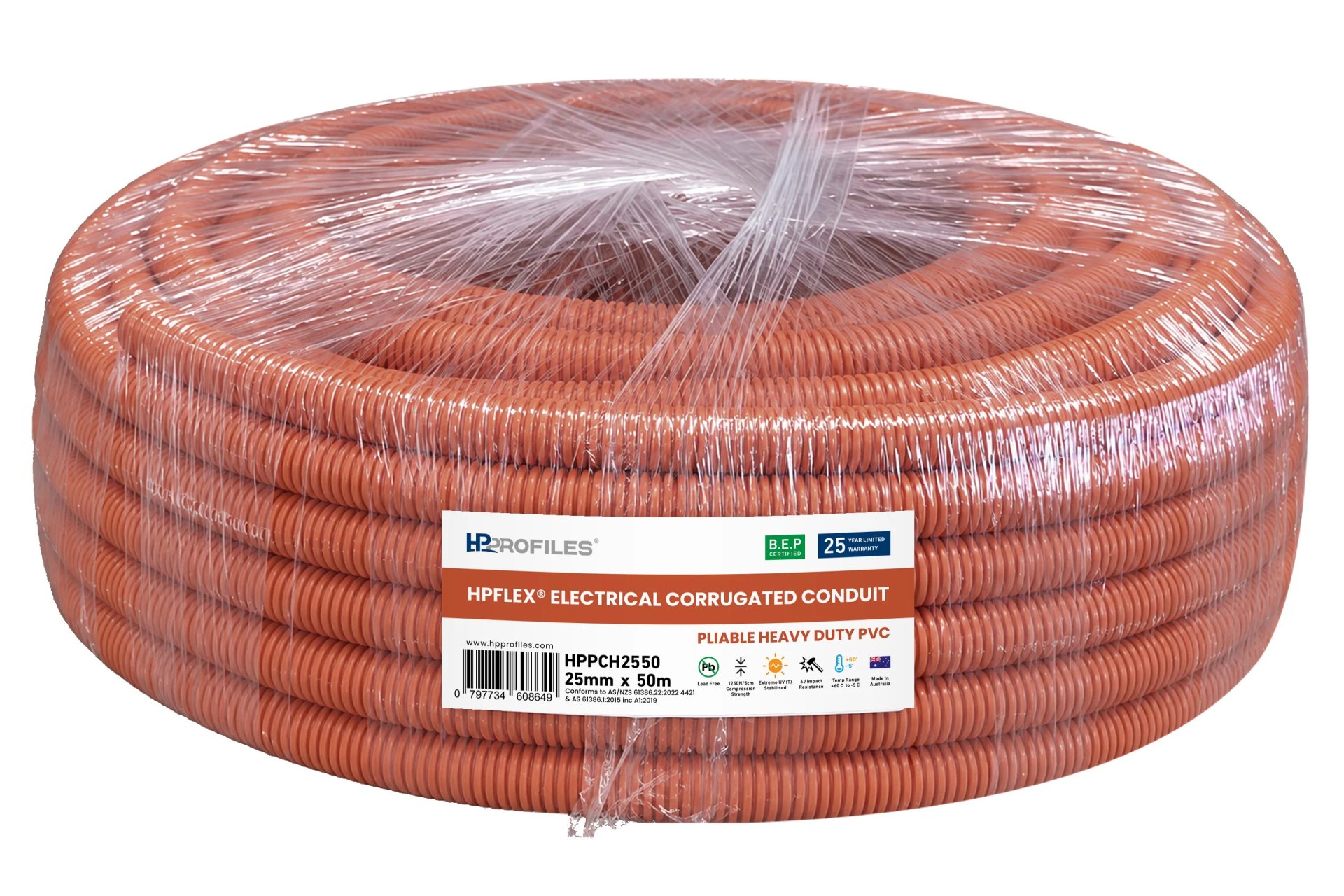

HPPCH2550
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 25mm x 50m
Ø25
18.2
25
50
150
Orange (RAL 2012)

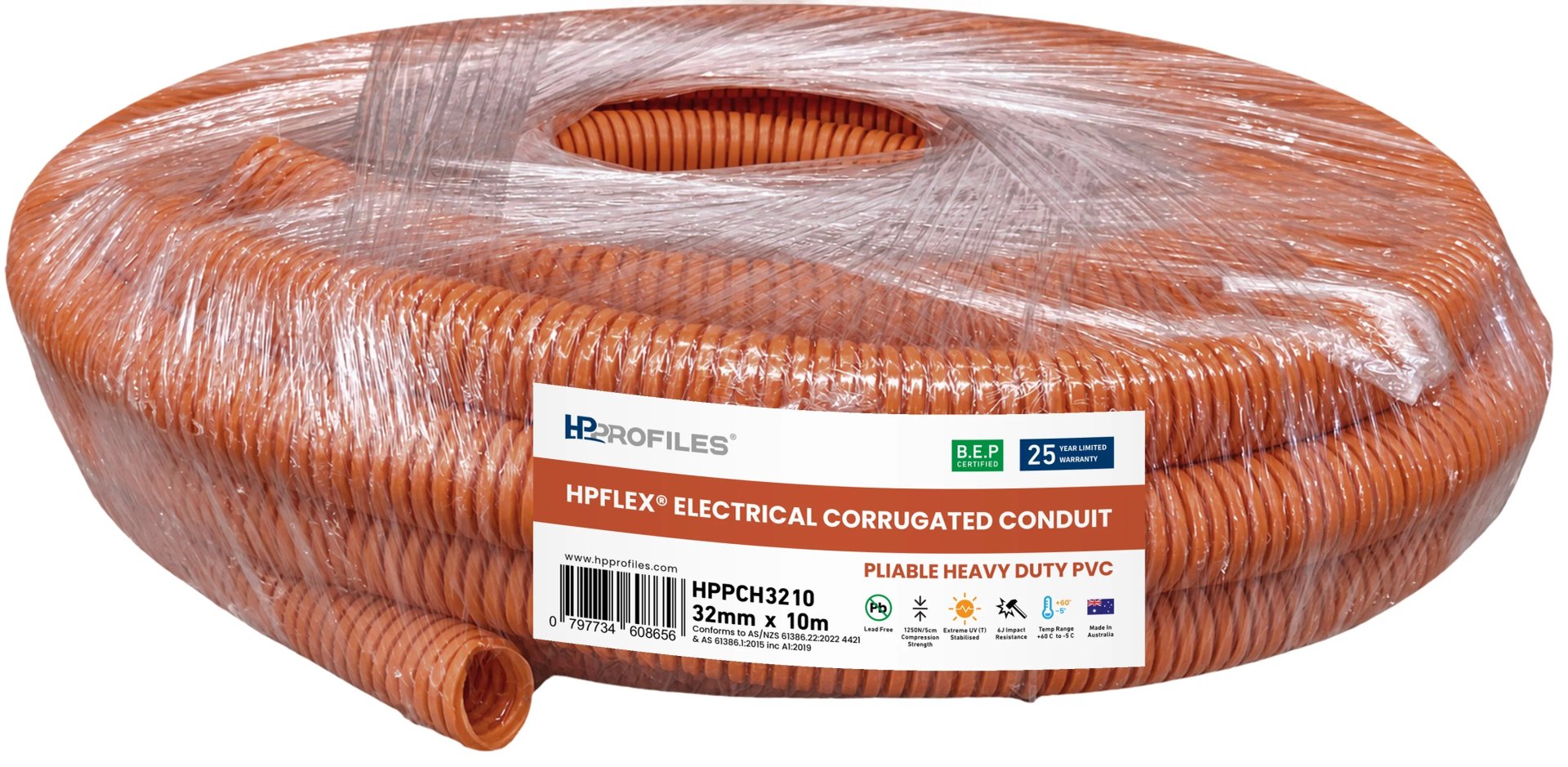

HPPCH3210
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 32mm x 10m
Ø32
23.8
32
10
192
Orange (RAL 2012)

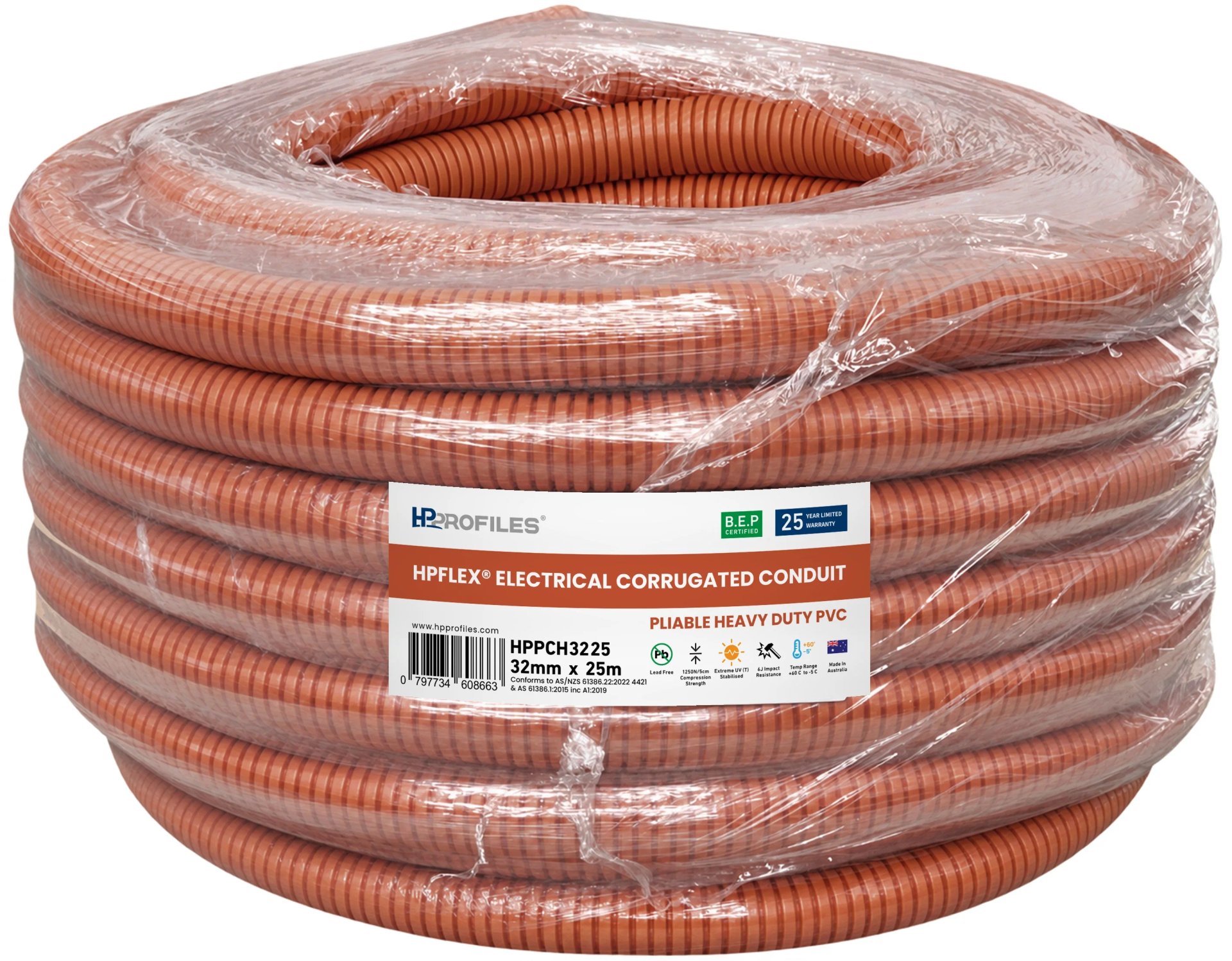

HPPCH3225
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 32mm x 25m
Ø32
23.8
32
25
192
Orange (RAL 2012)

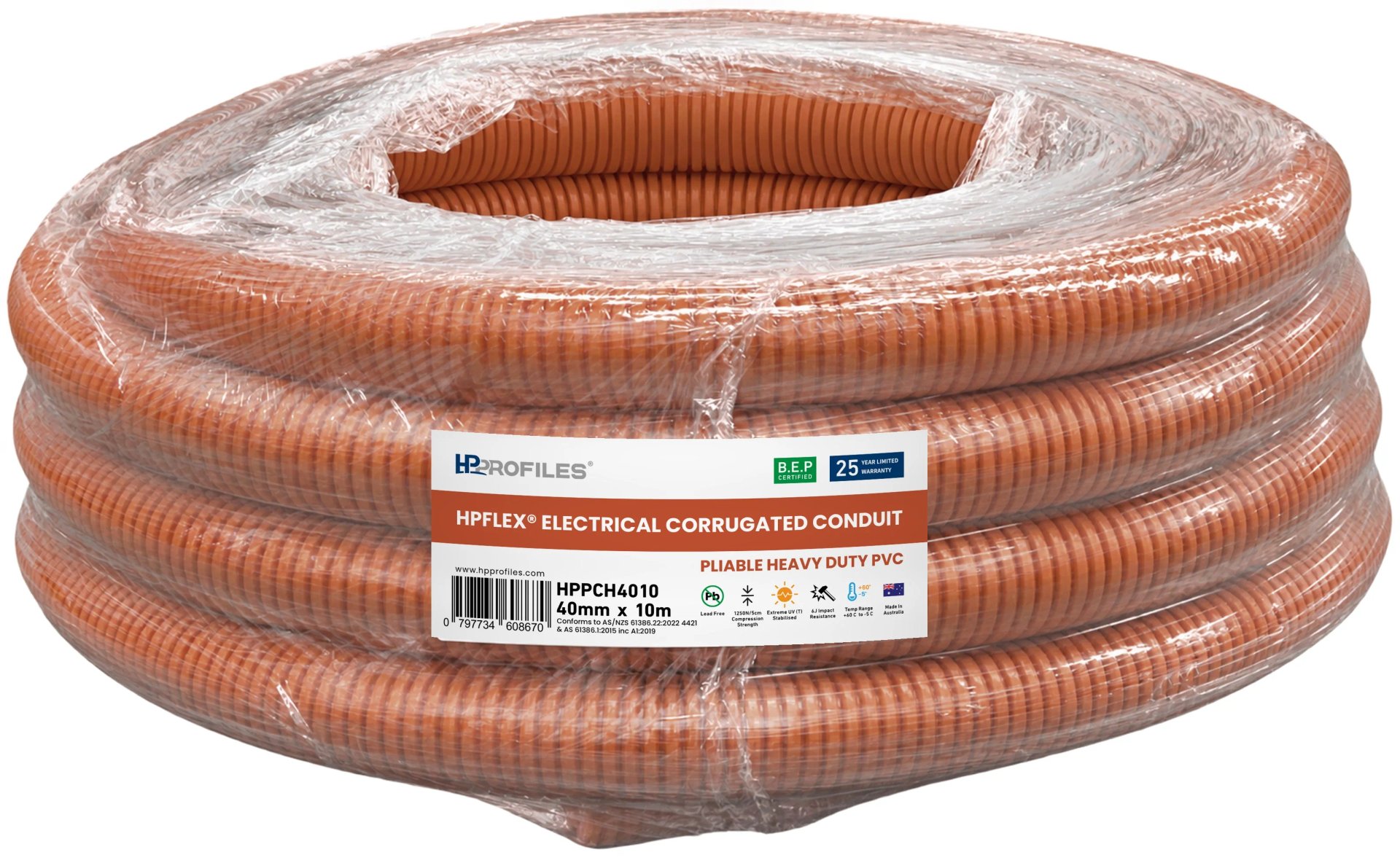

HPPCH4010
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 40mm x 10m
Ø40
32.6
40
10
240
Orange (RAL 2012)

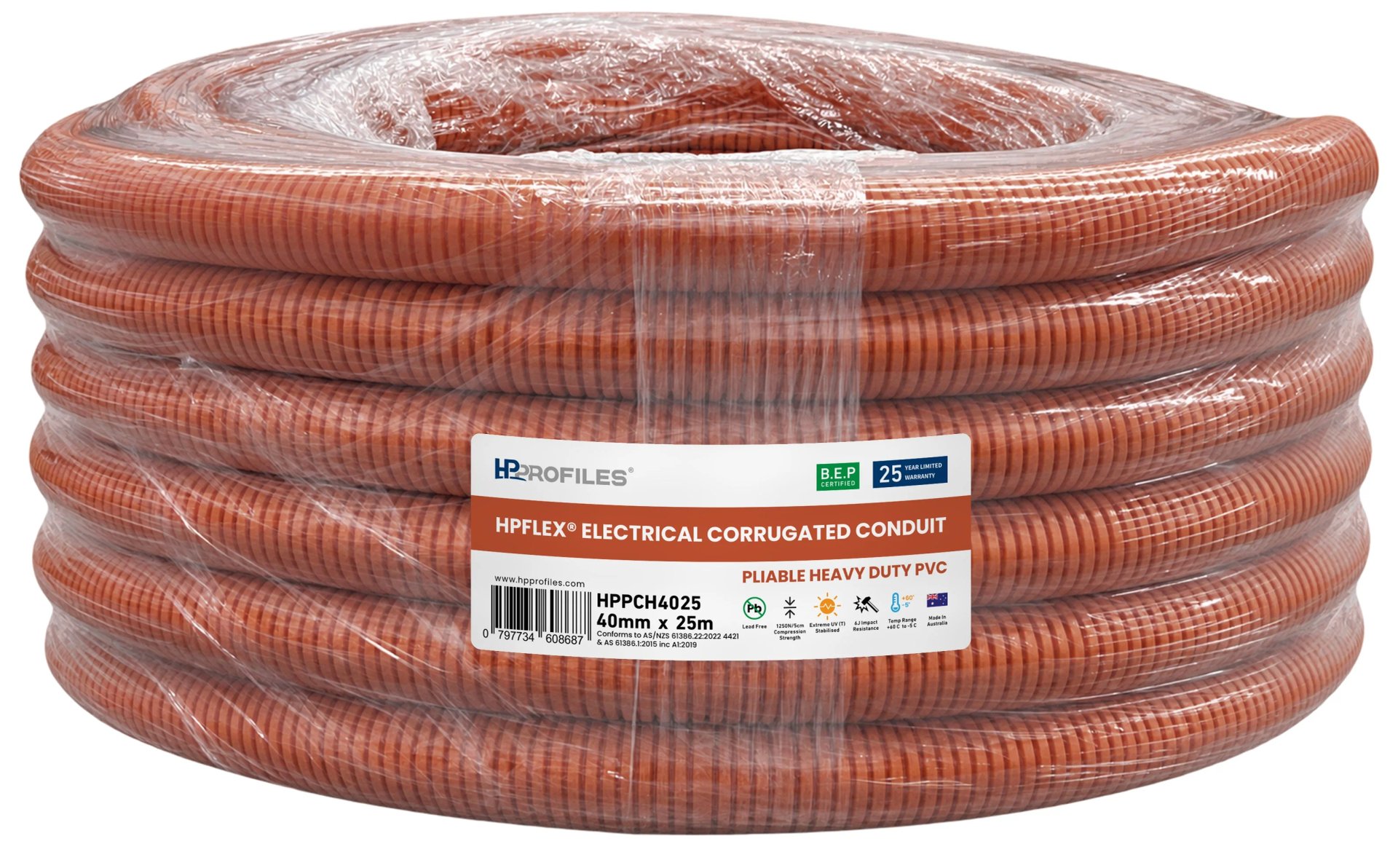

HPPCH4025
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 40mm x 25m
Ø40
32.6
40
25
240
Orange (RAL 2012)
HPPCH5010
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 50mm x 10m
Ø50
41
50
10
300
Orange (RAL 2012)

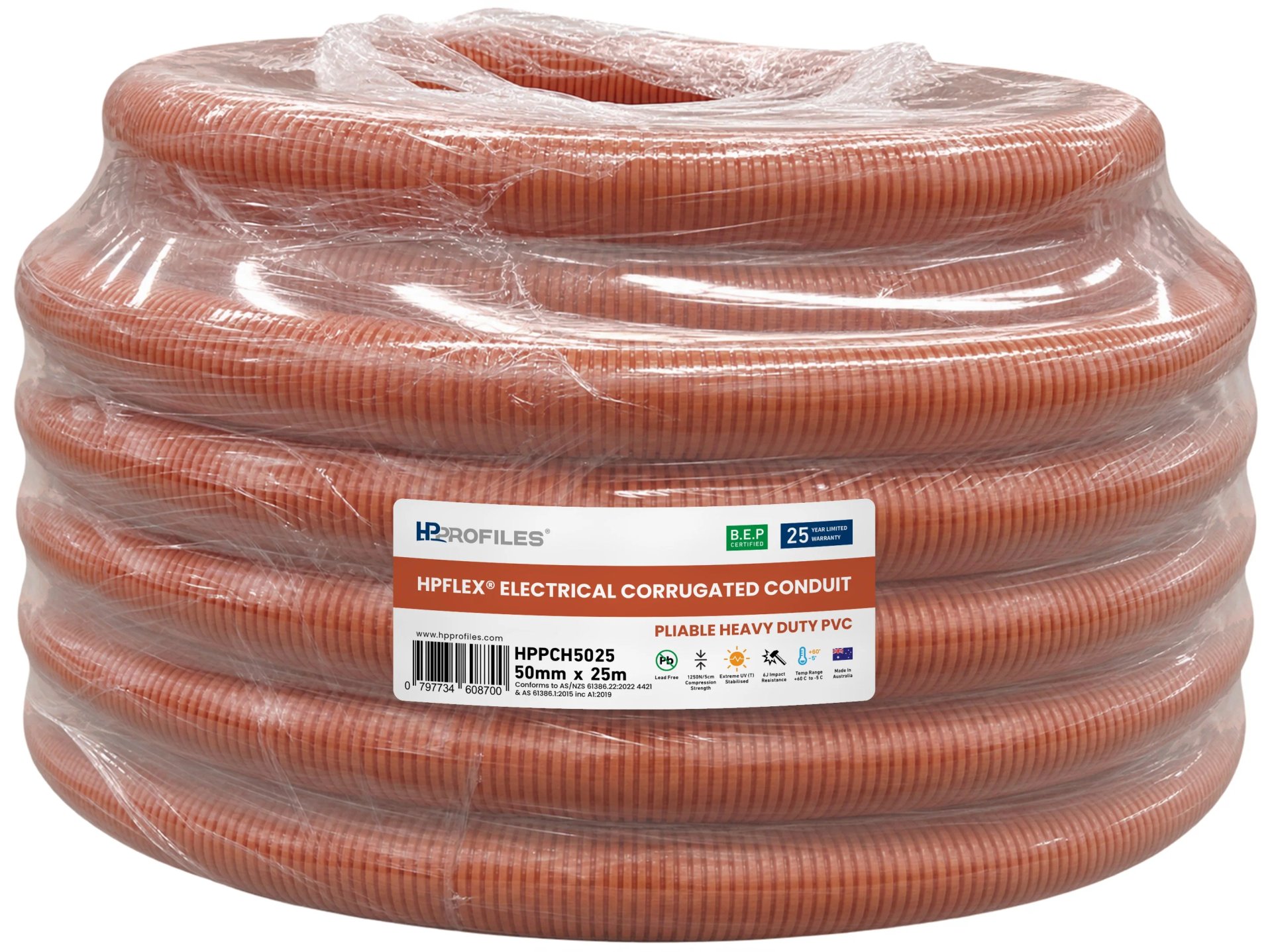

HPPCH5025
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 50mm x 25m
Ø50
41
50
25
300
Orange (RAL 2012)

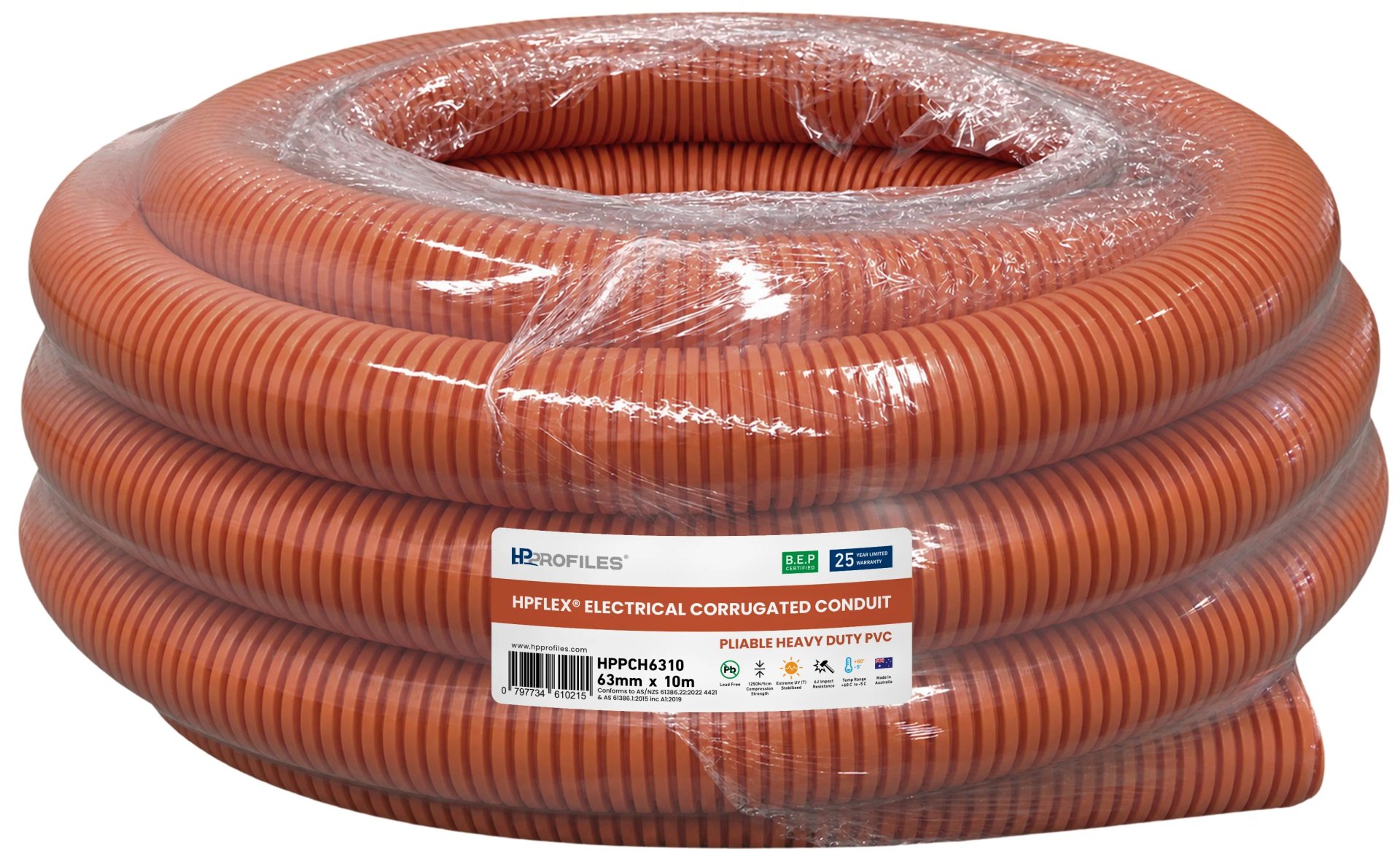

HPPCH6310
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 63mm x 10m
Ø63
52
63
10
378
Orange (RAL 2012)

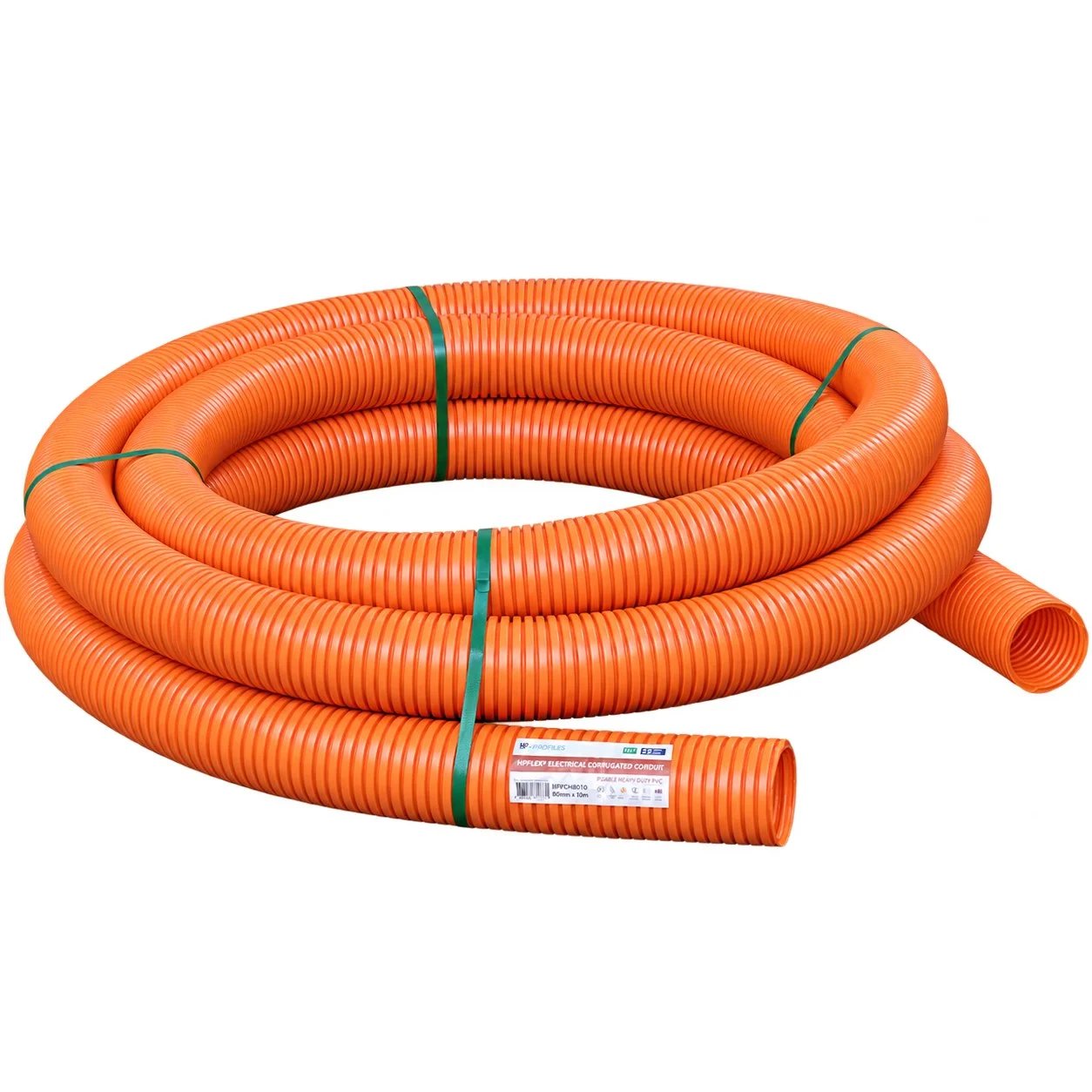

HPPCH8010
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 80mm x 10m
Ø80
79
96
10
480
Orange (RAL 2012)
HPPCH8010G
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 80mm x 10m - Grey
Ø80
79
96
10
480
Grey
HPPCH8010W
HPFLEX® Heavy-Duty Electrical Corrugated Conduit Roll 80mm x 10m - White
Ø80
79
96
10
480
White (RAL 9003)
Documents & Downloads
Datasheets, compliance certificates and installation guidance for this product.
HPFLEX® Heavy Duty Datasheet
Download PDF
