HPFLEX® Communications Electrical Corrugated Conduit

HPFLEX® Communications Electrical Corrugated Conduit product image

HPFLEX® · uPVC

HPFLEX® Communications Electrical Corrugated Conduit

HPFLEX® Medium Duty Communications Corrugated Conduit is designed to provide reliable protection for communication and data cables in a variety of applications.

Extreme UV (T)

Medium Duty

Pliable

Australian Made

Lead Free

Active

Impact Resistance

2J

Impact classification

Compression

750N

Compressive strength

UV Classification

Extreme UV (T)

Weathering exposure

Working Range

-5°C+60°C

Ambient, continuous

Overview

HPFLEX® Medium Duty Communications Corrugated Conduit protects communication and data cabling across commercial, residential and infrastructure installations. Manufactured in Australia from B.E.P certified material, it delivers the durability, safety and compliance specifiers expect.

Extreme UV (T) stabilisation makes it suitable for exposed and outdoor runs, while a completely lead-free formulation keeps installations safer and more environmentally responsible. Standard sizes run up to 50mm, with larger diameters up to 150mm available on request — see our Corrugated Joiner for jointing options.

Backed by a 25-year warranty and manufactured to AS/NZS 2053.5-2001, HPFLEX® gives installers and project managers long-term confidence in every run.

Key features

  • Australian made — designed and manufactured in Australia
  • Standards compliant — AS/NZS 2053.5-2001 and AS/NZS/IEC 61386-22:2021 3.3.2.1
  • Extreme UV (T) stabilised — rated for outdoor and exposed applications
  • Lead-free, B.E.P certified — safer handling, lower environmental impact
  • Size range — up to 50mm standard, to 150mm on request
  • 25-year warranty — diminishing liability over time (see warranty terms)

Characteristics

Product Code

HPPCMC

Material

uPVC

Impact Resistance

2J

Compression Strength

750N

UV Classification

Extreme UV (T)

Minimum Working Temperature

-5°C

Maximum Working Temperature

+60°C

Resistance to Bending

Pliable

Flame Performance

Non-flame propagating (UL94-V0)

Dielectric Strength

10 - 40 kV/mm

Colour

White

Country of Manufacture

Australia

Product Codes & Dimensions

Scroll horizontally to see all columns. Contact our technical team for project-specific sizing.

Part Number

Variant Description

Nominal Size

Internal Ø (mm)

External Ø (mm)

Length (m)

Bend Radius (mm)

Pack Qty

Carton Qty

Colour

HPPCMC2520

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 25mm x 20m

Ø25

18.2

25

20

150

White (RAL 9003)

HPPCMC2020

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 20mm x 20m

Ø20

14

20

20

120

White (RAL 9003)

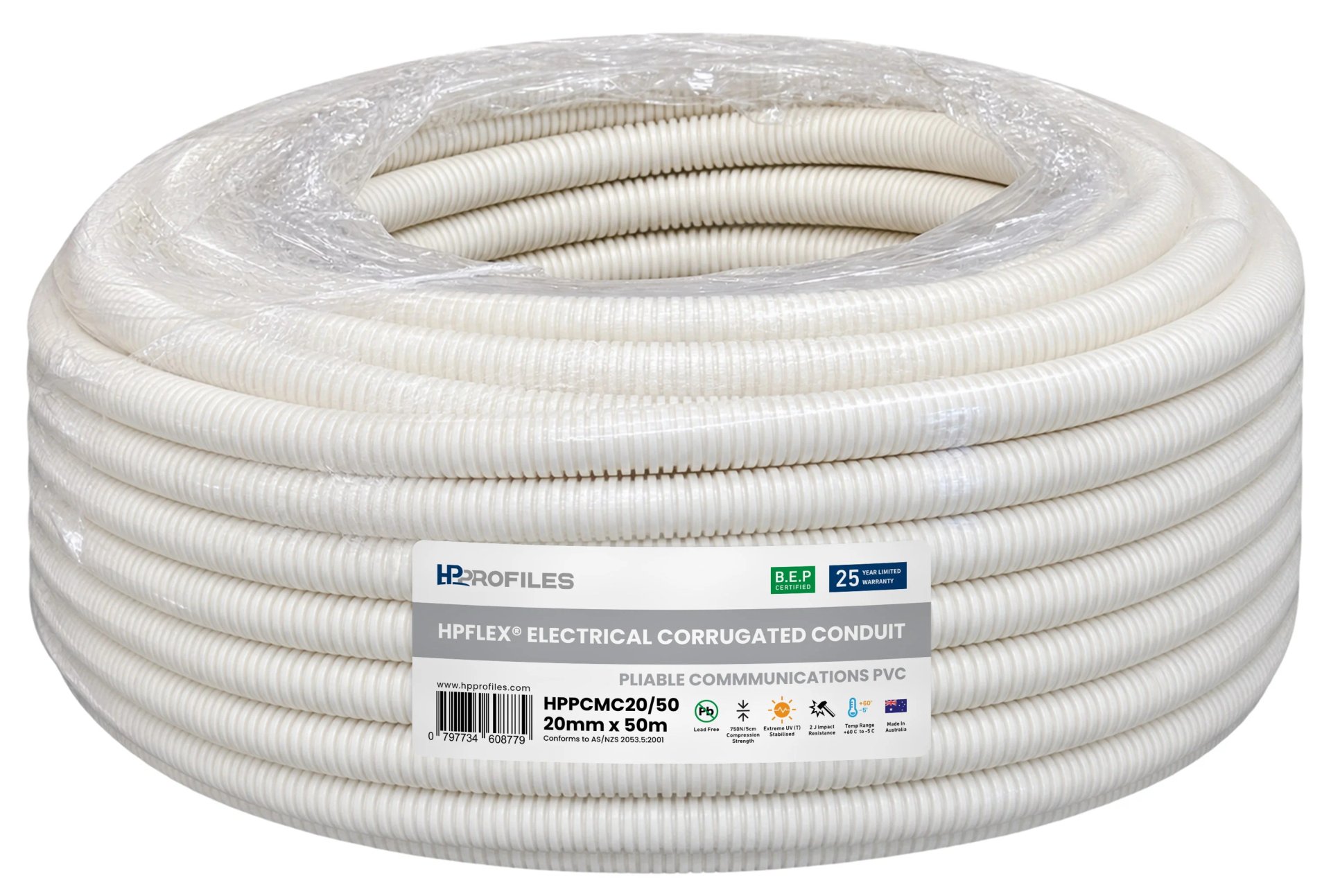

HPPCMC2050

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 20mm x 50m

Ø20

14

20

50

120

White (RAL 9003)

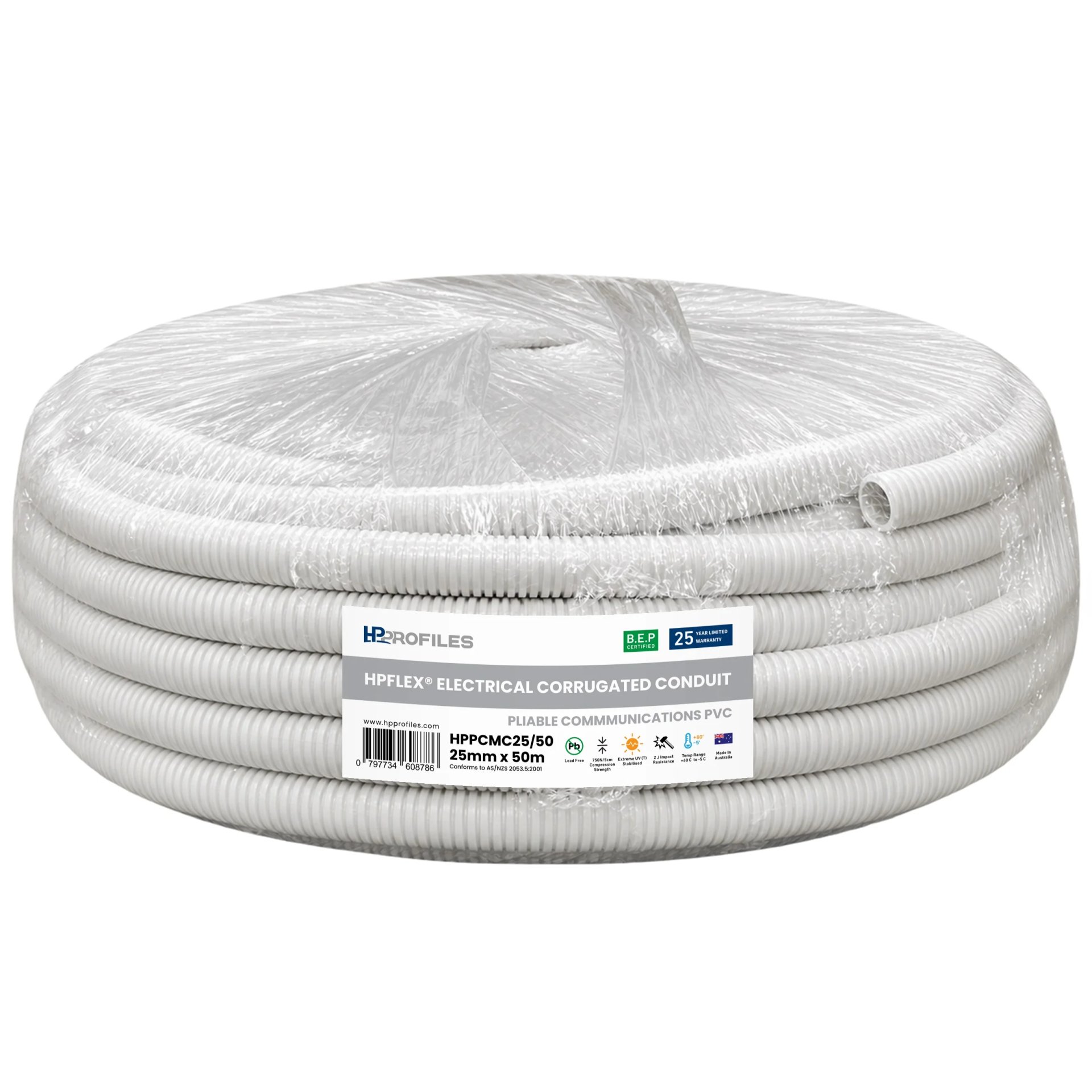

HPPCMC2550

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 25mm x 50m

Ø25

18.2

25

50

150

White (RAL 9003)

HPPCMC3225

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 32mm x 25m

Ø32

23.8

32

25

192

White (RAL 9003)

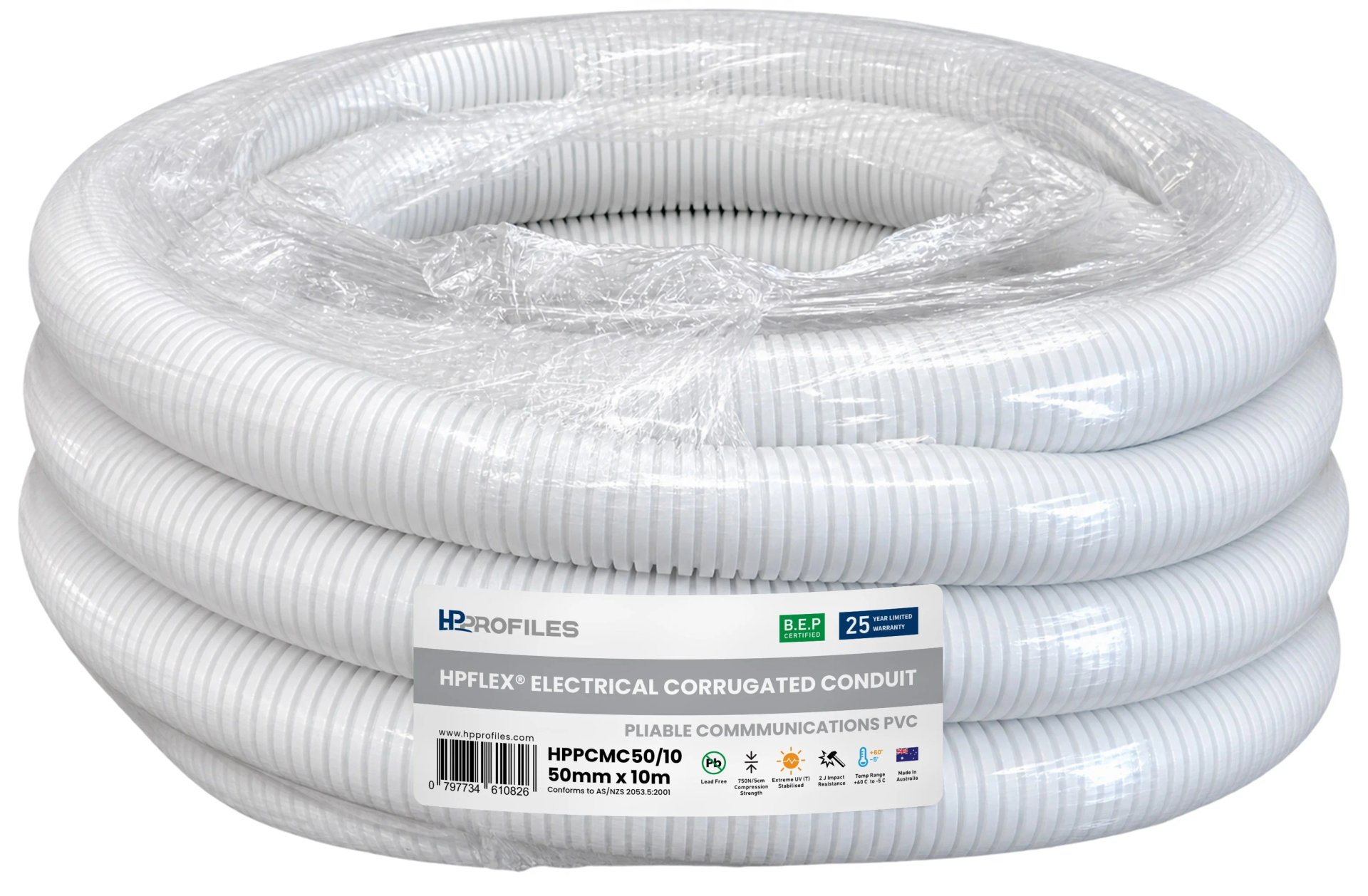

HPPCMC5010

HPFLEX® Medium-Duty Communications Corrugated Conduit Roll 50mm x 10m

Ø50

41

50

10

300

White (RAL 9003)

Documents & Downloads

Datasheets, compliance certificates and installation guidance for this product.

HPFLEX® Communications Datasheet

HPFLEX® Communications Datasheet

Download PDF
