Manufactured at our Melbourne plant for Australian conditions, HPDUCT® provides a clean, durable solution for concealing and protecting surface-mounted cable runs. It is ideal where chasing cables into walls is impractical, delivering a neat finish while keeping wiring accessible for future maintenance.

White is the standard choice for painted walls, office fit-outs and residential interiors, allowing the ducting to blend discreetly into its surroundings. The same profile is also available in grey.

Specifications

• Material: Lead-free rigid uPVC
• Sizes: From 16 mm × 10 mm to 150 mm × 75 mm
• Lengths: Supplied in 4 m lengths; 2 m lengths available on request
• Compliance: Conforms to AS/NZS 4296:1995
• Fire performance: Self-extinguishing and non-flame-propagating (UL94 V-0)
• Ingress protection: IP40 when installed as a complete system
• Dielectric strength: 10–40 kV/mm
• UV stability: Extreme UV (T) stabilised for indoor and outdoor use
• Working temperature: −5°C to +60°C
• Service life: More than 25 years
• Certification: Manufactured using B.E.P.-certified material
• Base: Selected sizes feature pre-punched fixing holes

Applications

• Surface-mounted cable management in commercial and residential buildings
• Switchboard and control-panel wiring
• Retrofit and rewiring projects in occupied buildings
• Exposed cable runs requiring UV stability and impact resistance

HPDUCT® resists water, weather and most chemicals commonly encountered in general electrical installations. Its rigid uPVC construction is also unattractive to rodents.

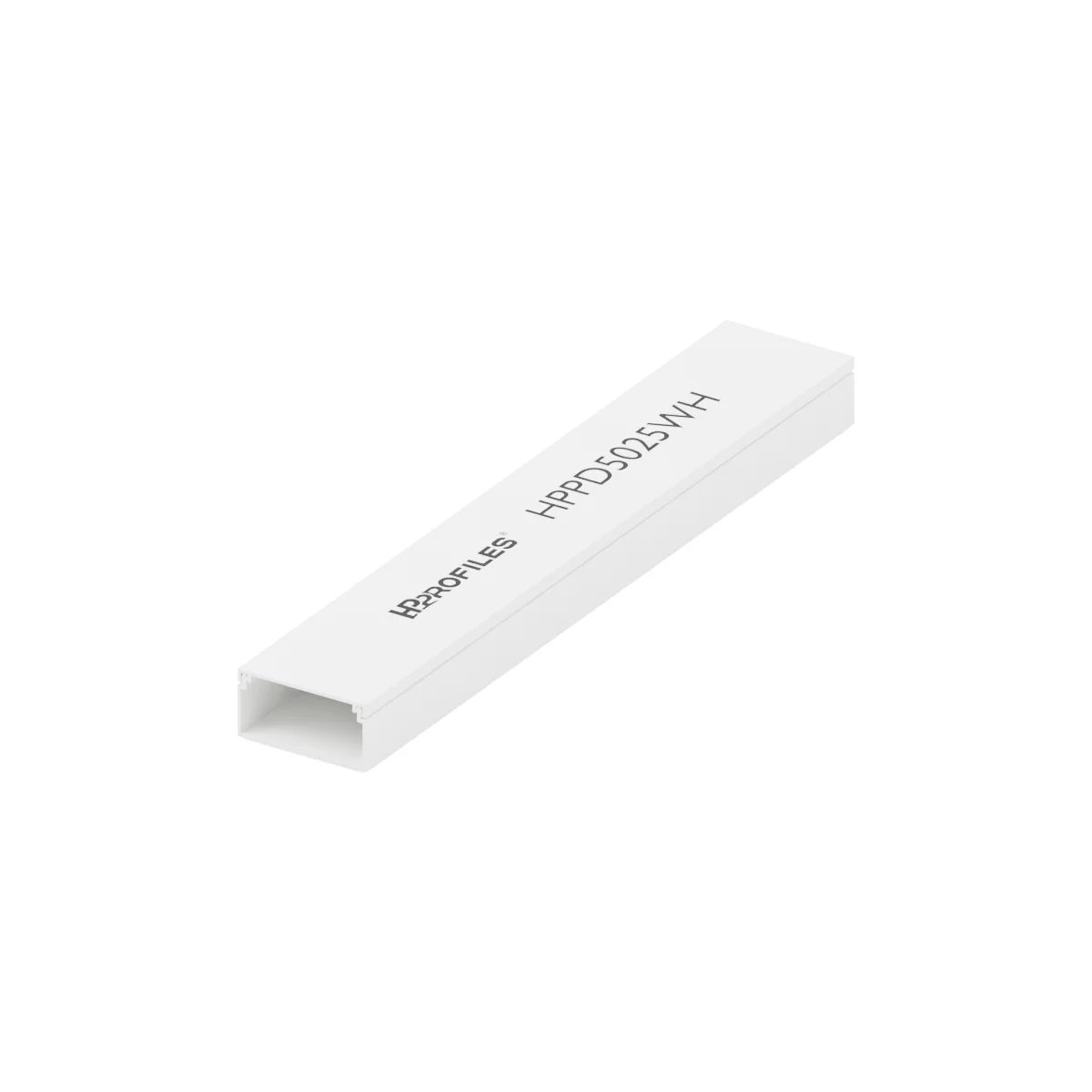

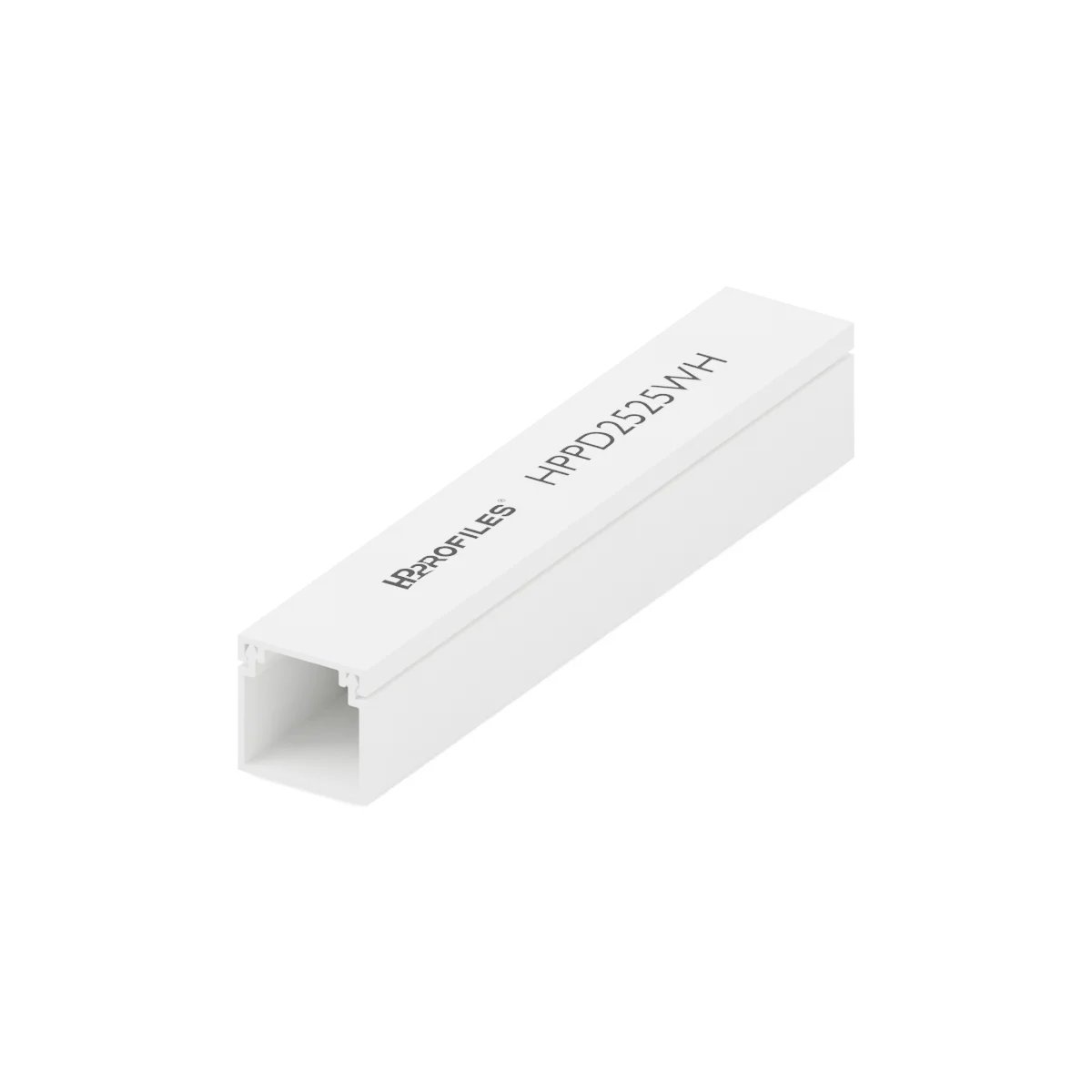

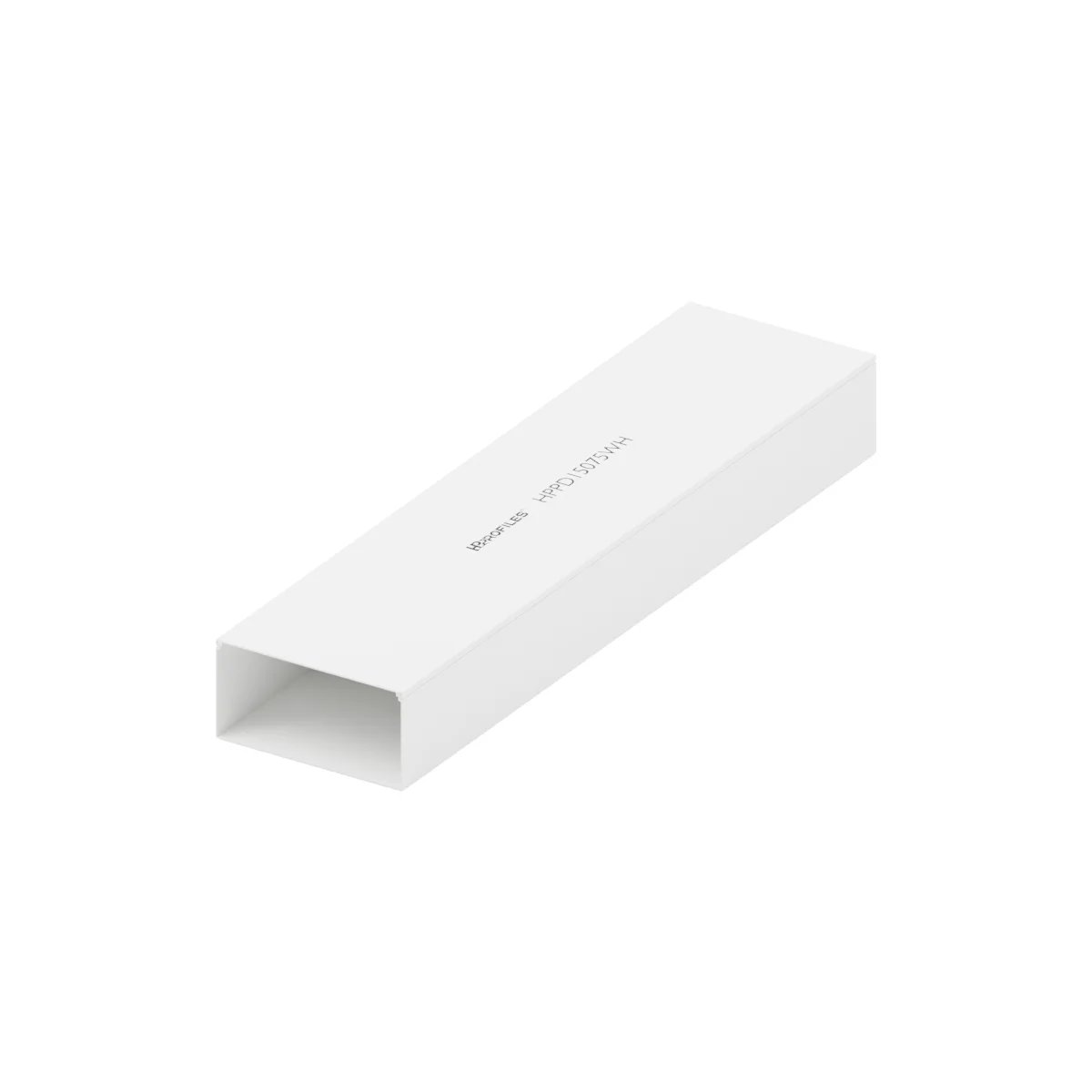

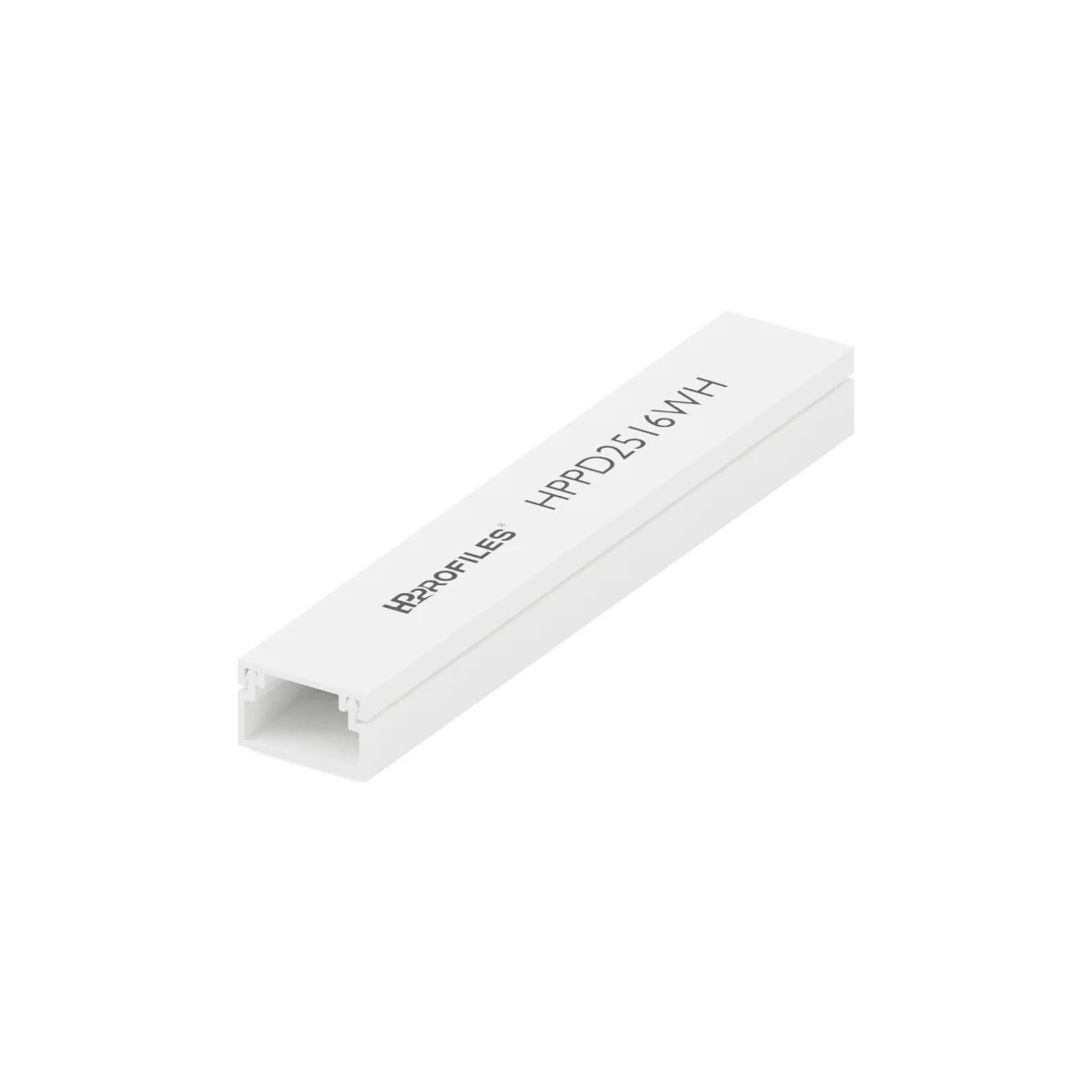

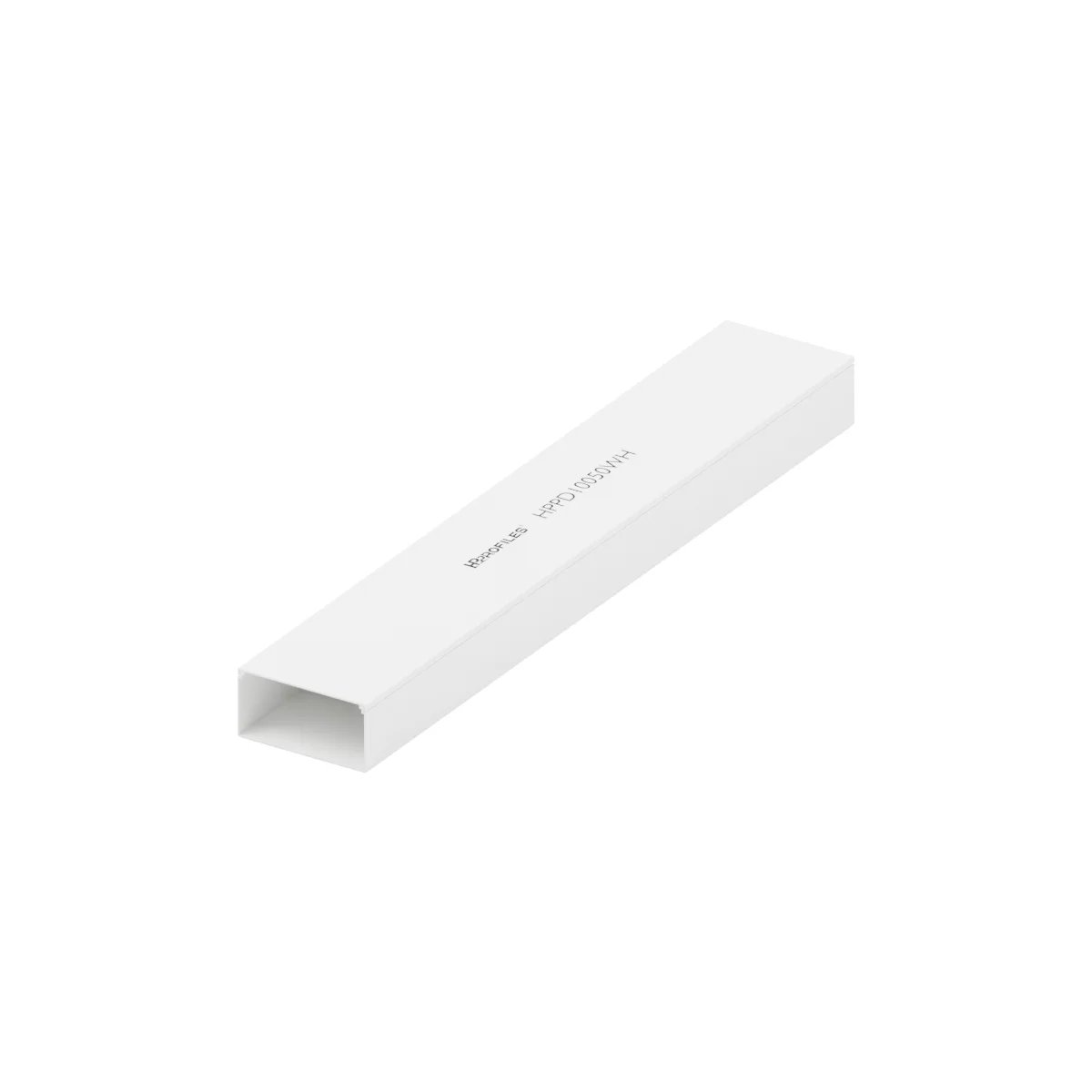

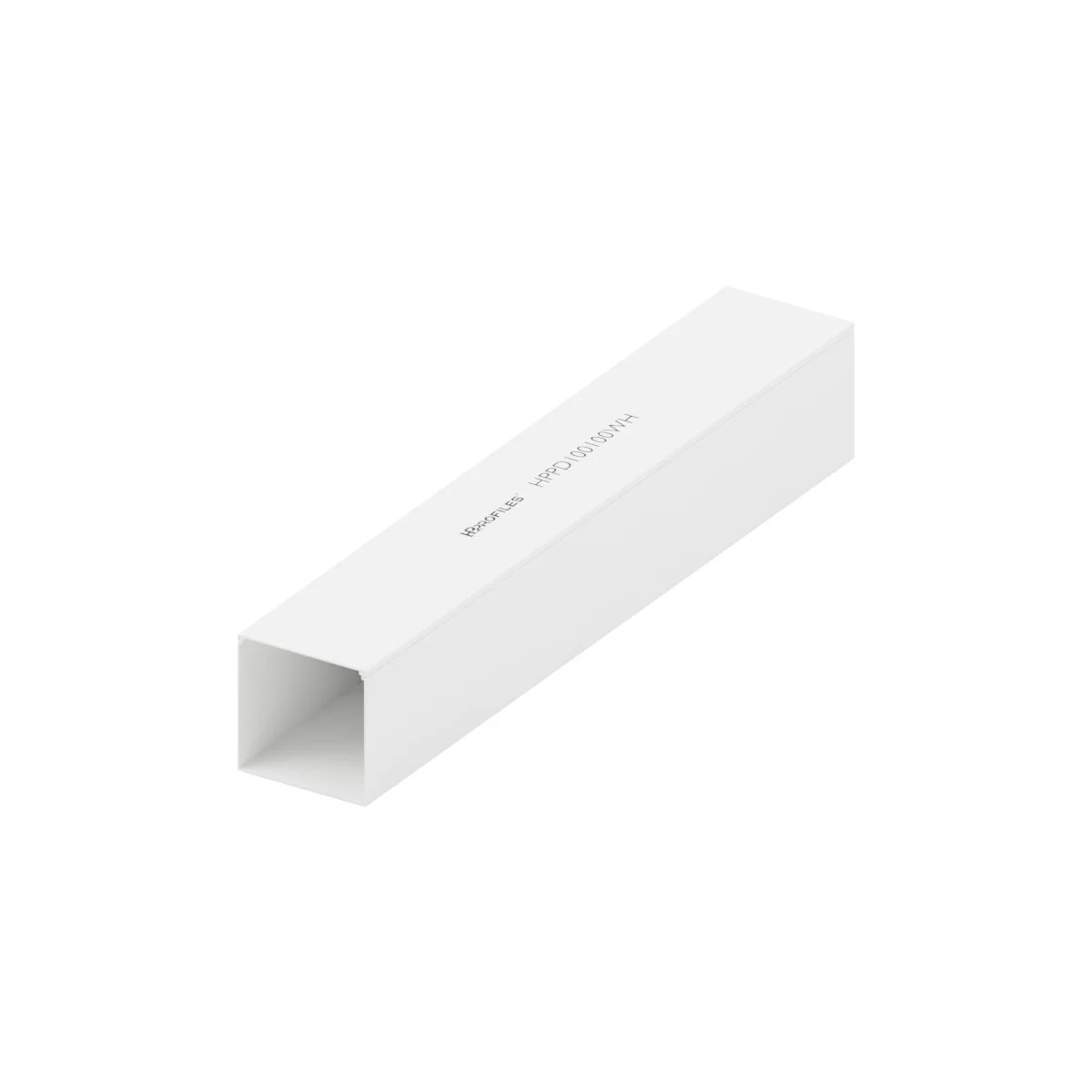

See below for the complete range of sizes, pack quantities and part numbers.
